Furan Resin Mortar

Furan Resin Mortar is widely used for Acid Resistant Bricks & Tiles lining works as Bedding & Jointing Mortar for Tanks, Floor, Drain, Foundation, Chemical Reaction Vessels, and Neutralization Pit etc.

Resistant :

  • It is resistant to Non-Oxidizing Acids, Alkalies, Salt, Solvents, Greases, Detergents and Oils.Carbon Filled
  • Furan Mortar is to be used to resist hot & highly concentrated alkalies, Hydrofloric Acid, Flourid Salted etc.

170° C (Max.)

  • It is resistant to Non-Oxidizing Acids, Alkalies, Salt, Solvents, Greases, Detergents and Oils.Carbon Filled

Preparation of Mortar :

  • Preparation of Mortar generally consists of Solution & Powder. In order to obtain good working consistency, the average mixing ratio is 1 Pbw of Solution & 3 pbw of Powder. This ratio will slightly vary depending upon the temperature and working conditions.
  • Prepare small batches of Mortar. Stirrer the Solution thoroughly before use. Place the Solution in a suitable mixing pan and add powder in it. Mix thoroughly with a spatula or Trowel. The mixing operation shall be continued until a uniform mixture is obtained.
  • Make sure that all the Mortar is used from the mixing pan before another batch is prepared.

Setting / Curing :

  • Furan Resin Mortar is a Self-hardening due to its chemical reaction which occurs when the Powder & Resin are mixed together.
  • An initial setting occurs in 6 to 8 hrs. at 30°C
  • Final Setting occurs in 24 to 48 hrs. at  30°C
  • Curing time: 7 days at  30°C
  • Please ensure that no water shall be spilled over the bricks lining works before it completely cured.

Furan Resin Mortar Cond..

Mechanical/Physical property:

  • Working time at 30°C  : 20 minute (min)
  • Density of cured mortar : 1.8 grm per cc
  • Bond strength : 10 Kg.Cm2
  • Compressive Strength  : 350 Kg/Cm2
  • Flexural Strength : 75 Kg/Cm2
  • Water Absorption : 1%

Storage Life

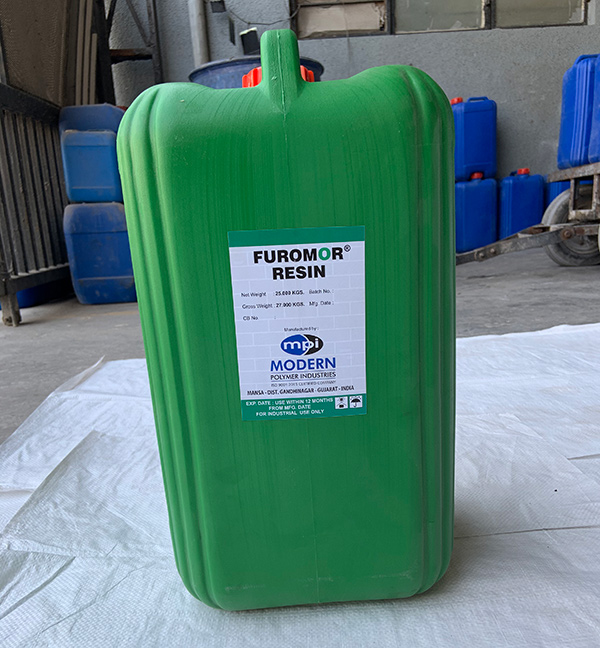

  • Solution : 12 Months at the temperature 30°C (+2°C)

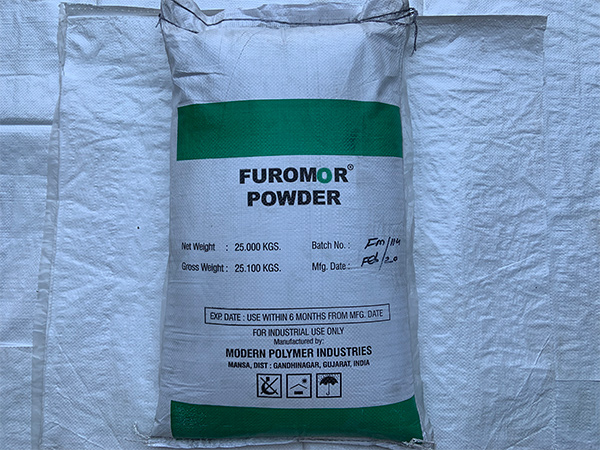

  • Powder : 6 Months at the temperature 30°C (+2°C)

All two components are stored in cool and dry place under the roof until ready to use it original unopened (Sealed) containers.

Packing

  • Solution: 25 Kg. in M.S. Drum
  • Powder: 25 Kg. in Plastic Bag

Export packing

  • As per customer’s requirement
